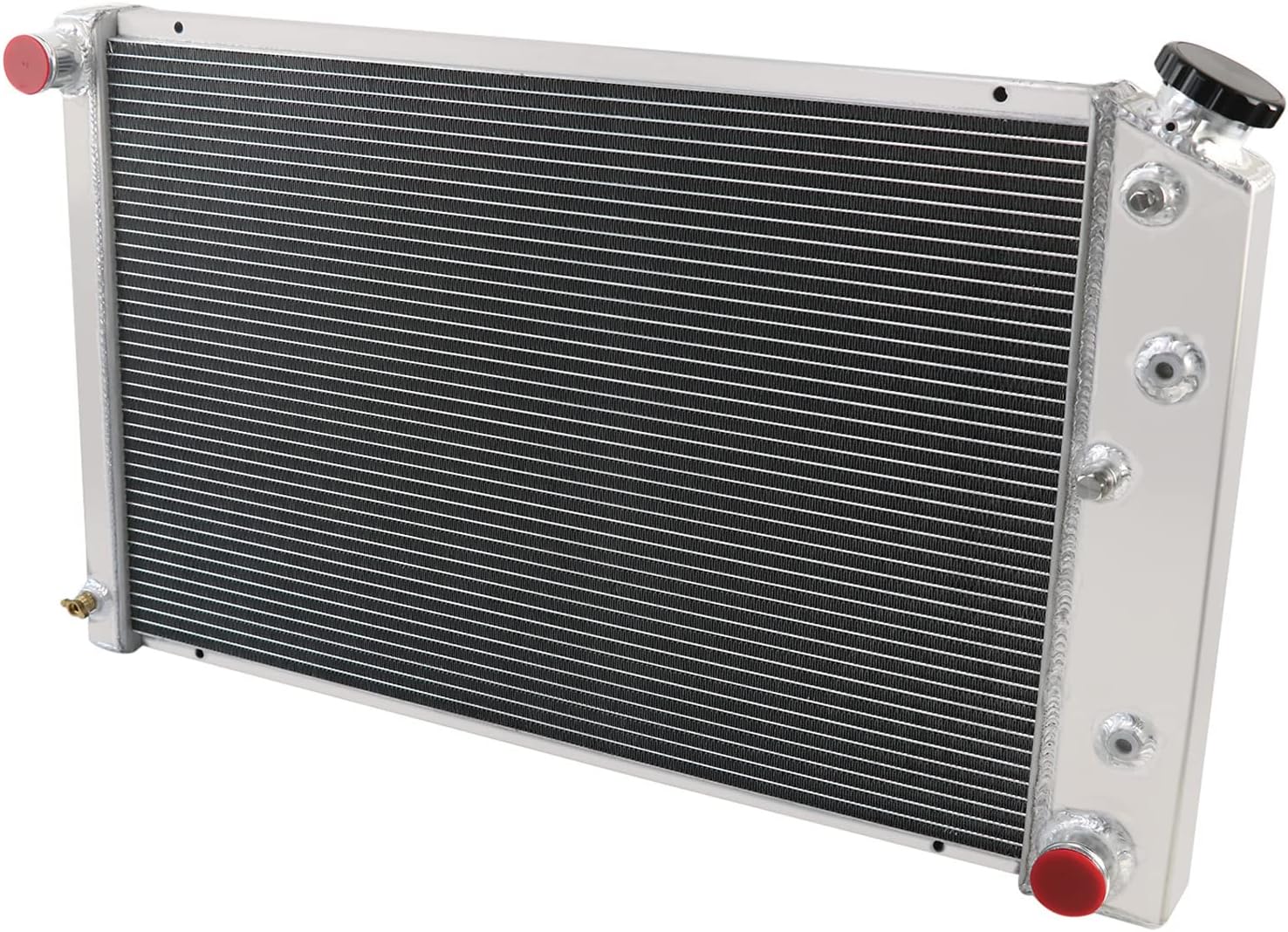

3 Row Aluminum Radiator Shroud Fan for 1970-1981 Chevy Camaro 78-87 Monte Carlo 70 71 72 Chevelle 78-83 Malibu 75-79 Nova 75-79 Buick Skylark

Fitment: For Chevy Camaro/75-79 Nova/68-73 Chevelle El Camino 70-81 For Buick Century 4.3L 4.9L 5.0L 1980 For Buick Regal 3.8L 4.9L 79-80 For Buick Estate Wagon 5.7L 1979 For Chevy C10 / C20 /C30 /G10 4.1L 4.8L 5.7L 79-80 For Chevy C10 Suburban / C20 Suburban/ G20 / G30 4.1L 5.0L 5.7L 1979 For Chevy Camaro /El Camino 3.3L 4.1L 4.4L 5.0L 5.7L 1979 For Chevy Impala / Monte Carlo /P30 5.0L 5.7L 1980 For Chevy K10/K20 /K30 4.1L 4.8L 5.7L 79-80 For Chevy K10 Suburban / K20 Suburban 5.0L 5.7L 1979 For Chevy Malibu 3.3L 3.8L 4.4L 5.0L 5.7L 79-80 For GMC C1500/ G1500 /C1500 Suburban / C2500 /Jimmy/ K1500 Suburban/K2500 Suburban 1980 For Oldsmobile Cutlass/Cutlass Cruiser/ Delta 88 5.0L 4.3L 1980 For Pontiac Catalina / Grand LeMans/ LeMans 1980 This Listing Is Including: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Part Number: 1605-370064,433162,562,8010162,RA1191,REA41162A,SPTCU162,162,CC162,CU162,SBR162,KKS162,DPI162 Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

• Core Size : 26.22" H x 16.85" W x 1.73" T;Overall Size : 18.51" H x 31.69" W x 5.51" T; Upper inlet: Upper Inlet: 1.5" located on the Driver side,Lower Outlet: 1.5" located on the Passenger side

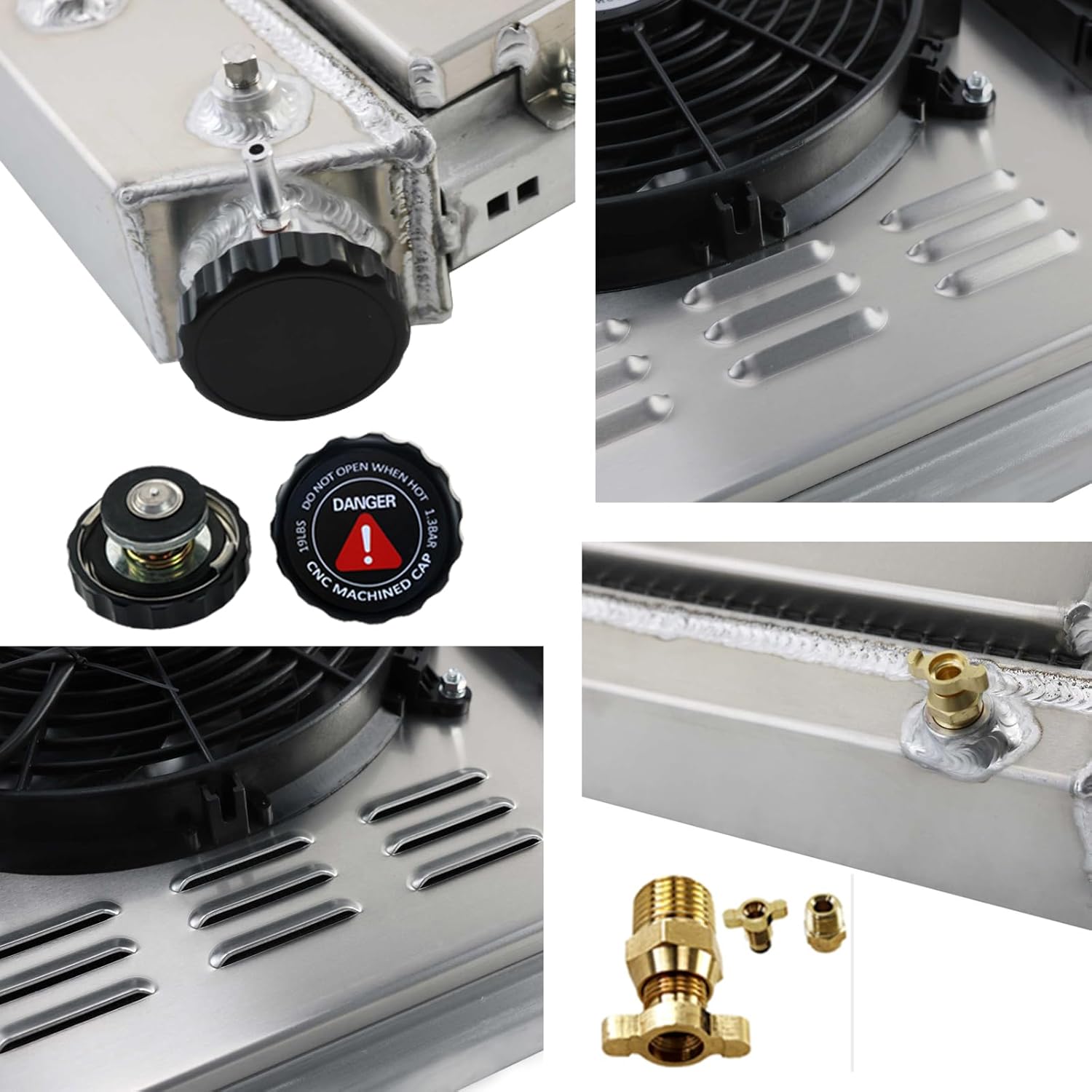

• Transmisson Oil Cooler：￠32*215*G1/4(Z),Trans Cooler Included -1/2" 20 Straight Threat G1/4-, Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain.
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant ；Features: 100% Leak Tested, Durability Tested, No Drilling or Modifications Needed for Installation ; One-year warranty. For any issues, please contact us immediately. Enignelooc will resolve the matter for you.
• High-quality material: Transmission Oil Cooler is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. The core of the Transmission Oil Cooler is welded in vacuum brazing furnace, no epoxy.
• Brazed core technology to guarantee optimum performance and dependability ; Carefully crafted to exceptional OE standards for precise fit.
