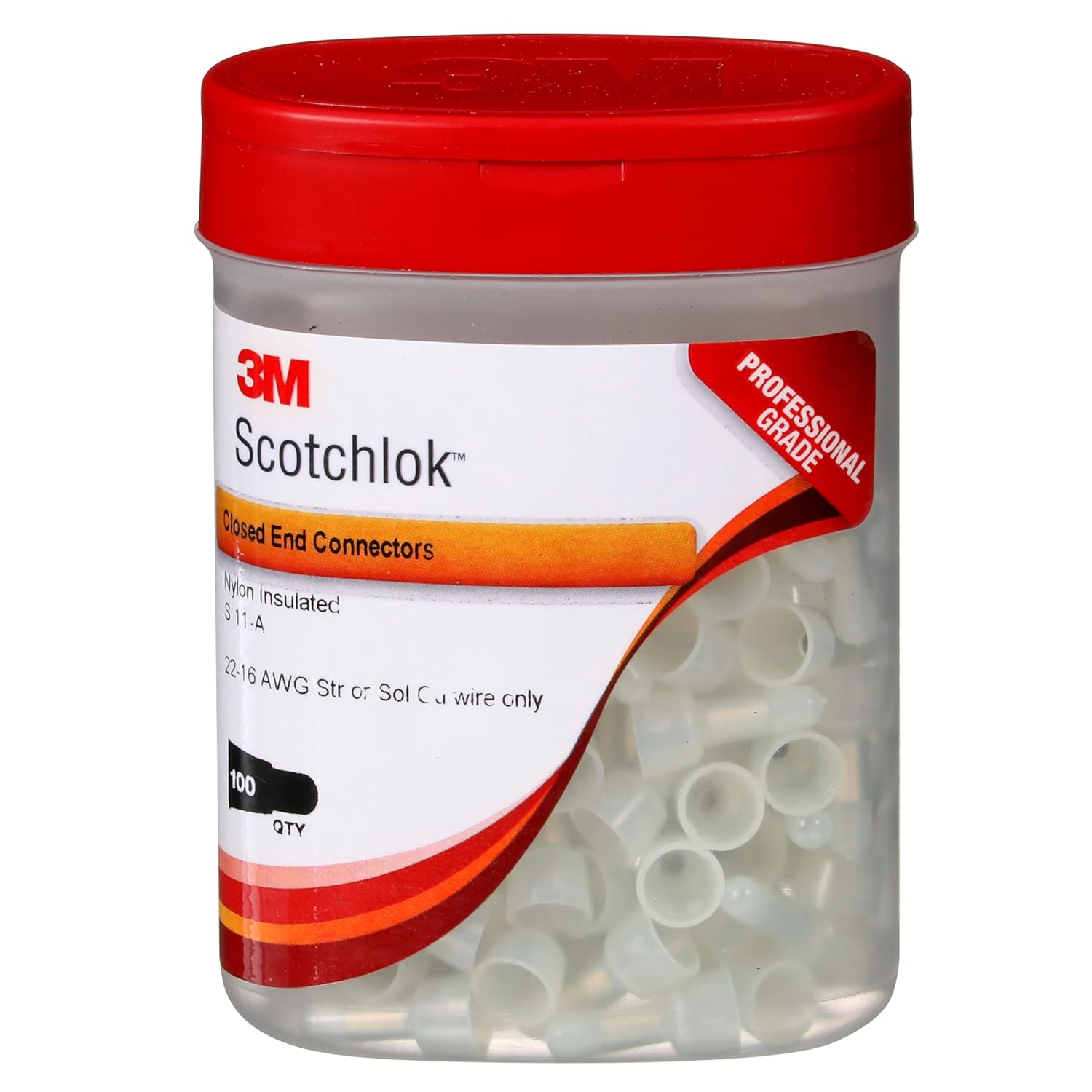

3M Scotchlok S-11-A Nylon-Insulated Butted Seam Standard Closed-End Connector, 22-16 AWG, Pack of 100, UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
4.2 (36 items)
Limited Time SaleUS$30.01 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211032149 | Release Date | 2026/04/04 | List Price | US$20.00 | Model Number | 211032149 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
3M Scotchlok S-11-A Nylon-Insulated Butted Seam Standard Closed End Connector connects permanently to the pre-stripped ends of two or more copper wires. Designed with a copper sleeve and a cover of molded nylon, the crimp-type connector allows for fast splicing of copper conductors and a max. voltage rating of 600V for building wire, 1000V for building signs and fixtures (luminaires). With the help of the connector’s smooth, flared end, easily insert solid or stranded copper wire (only), ranging in sizes 22-16 AWG. Additionally, the butted-seam barrel's built-in wire stop quickly positions the wire cable exactly where needed. For a dependable connection and efficient positioning, use 3M Scotchlok S-11-A Nylon-Insulated Butted Seam Standard Closed End Connector.
- Vinyl-insulated barrel ensures a secure fit and offers reliable performance
- A smooth, flared end provides quick wire insertion
- Built-in wire stop for correct positioning
- Copper insert offers good conductivity
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- For industrial/occupational use only. Not for consumer sale or use
| UPC | 051128589977 |
|---|---|
| Color | Translucent White |
| Gauge | 22.0 |
| Model | S-11-A(Boxed) |
| Terminal | Butt Terminal |
| Stud Size | 16 gauge |
| Brand Name | 3M |
| Unit Count | 100.0 Count |
| Manufacturer | 3M |
| Material Type | Copper |
| Connector Type | Closed End |
| Maximum Voltage | 600 Volts |
| Contact Material | Copper |
| Specification Met | RoHS |
| Temperature Rating | 221 degree fahrenheit |
| Included Components | Item |
| Insulation Material Type | Nylon |
| Global Trade Identification Number | 00051128589977 |
