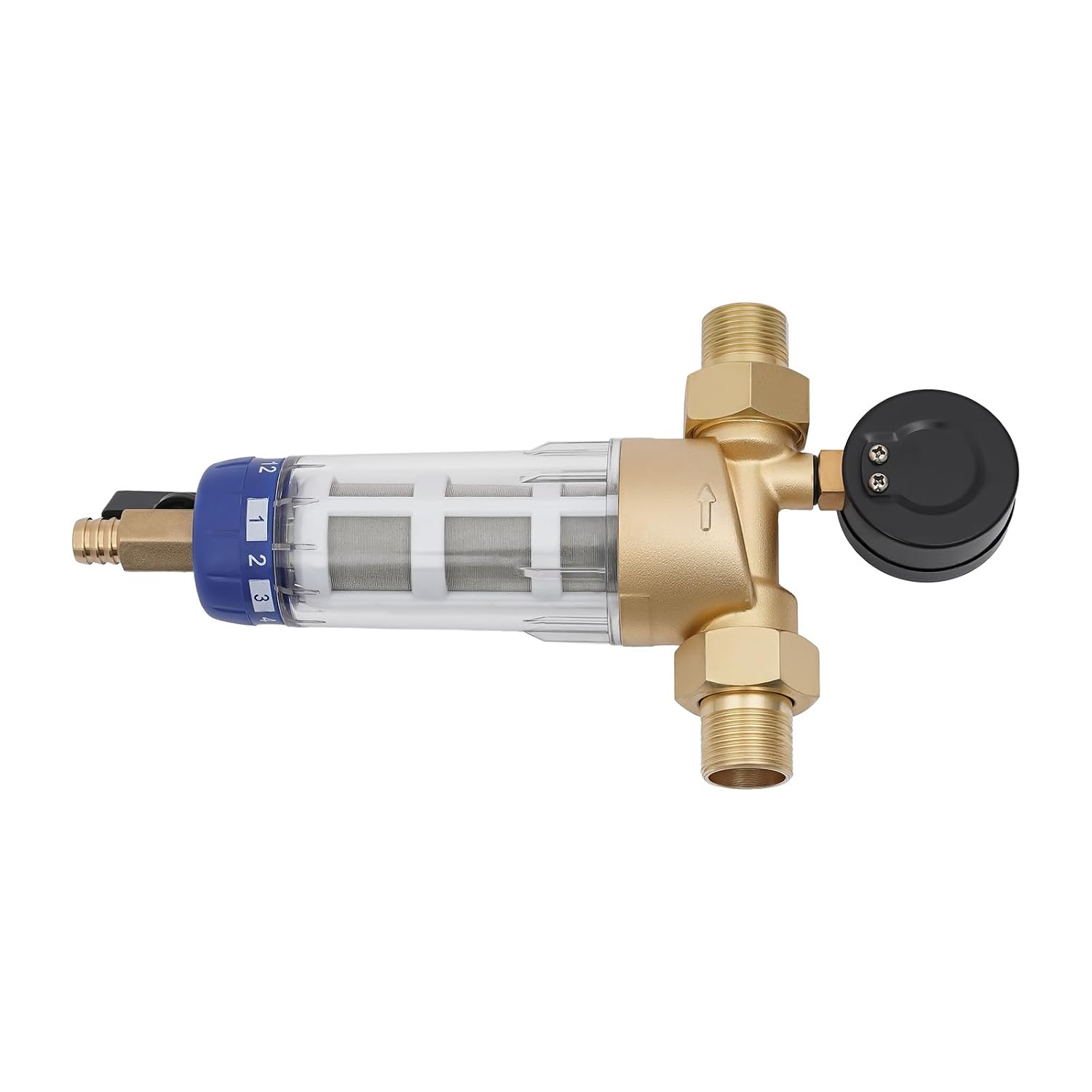

40 Micron Spin Down Sediment Filter Whole House Reusable, 3/4" FNPT + 1-1/4" MNPT Brass Housing Pre Filter with Pressure Gauge, Manual Backwash 3T/H High Flow for Well Water City Water

SpecificationMaterial: 58-3 Environmentally Friendly Copper, 316 Stainless Steel, PCColor: Clear, Coppery, BlueProcess: Copper Precision ProcessingAssembly Required: Yes Applicable Water Pressure: 0.1-0.8MPaApplicable Temperature Range: 0-60°C/32-140°FDaily Processing Capacity: 32L/8.45GalWater Outlet Mode: Single OutletWater Production Capacity: 3T/792.52Gal /HPressure Range: 1-20bar/14.5-290.1PSIPressure Loss: 0.5bar/7.25PSIFiltration Precision: 40μmInterface Internal Thread Size: 19.05mm/0.75inInterface External Thread Size: 32mm/1.26inInstallation Height above Ground: 10cm/3.94inProduct Size(L*W): 21*8.6cm/8.27*3.39 inPackage Included1* Pre-filter1* Pressure Gauge1* English Manual1.Please do not use it for wastewater or c-o-r-r-o-s-i-v-e liquid.2.Please check that the direction of the water flow marked on the product body is consistent with the flow direction of the water pipe.3.Please note that this product comes with 1.26in interfaces and 0.98in connectors. If you need 0.79in connectors or 0.79in PPR Live connectors, please purchase by yourself.4.Please note that all installation, testing, and maintenance should be carried out by professionals.5.Please note that this product is suitable for indoor use only.6.If the c-ontaminants in your water are too many or too large, we recommend you choose a larger micron filter or larger spin-down sediment water filtration. Please install it 3.94in from the ground.7.It is recommended that the cycle of backwashing is 15-30 days, just open the drain valve for at least 30 seconds to self-flush and clean the whole system to ensure the filtering effect.8.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

• 【High Flow】 The standard 1.26-inch interface ensures that it can provide stable high-flow water output even in high water-pressure environments without affecting the family's daily water needs.
• 【High-performance Filter】The premium 316 stainless steel filter screen with high filtration accuracy (40μm) can effectively intercept small impurities and prolong the service life of the back-end water purification equipment.
• 【Carefully Designed】 It does not require an electric drive and relies on natural water pressure without additional energy consumption.After flushing out the accumulated sediment, the filter can be used again， it can effectively reduce the cost of repair and replacement of appliances due to water quality problems.
• 【Thoughtful Design】 You can open the drain valve to flush the impurities retained by the stainless steel filter screen, realizing the automatic backwashing of the cartridge. Regular cleaning can be done easily without frequent disassembly of the water pipe connections and filter housing.
• 【Pressure Gauge】 It shows the water pressure in real time.
